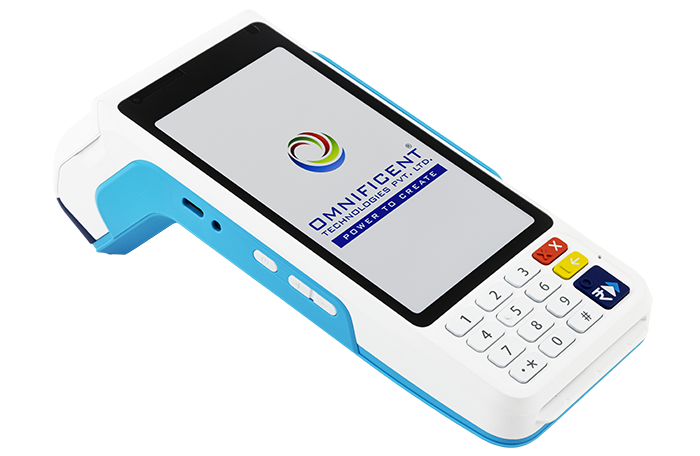

OTPL P3
Android Smart POS
All-in-one smart financial terminal for major payments

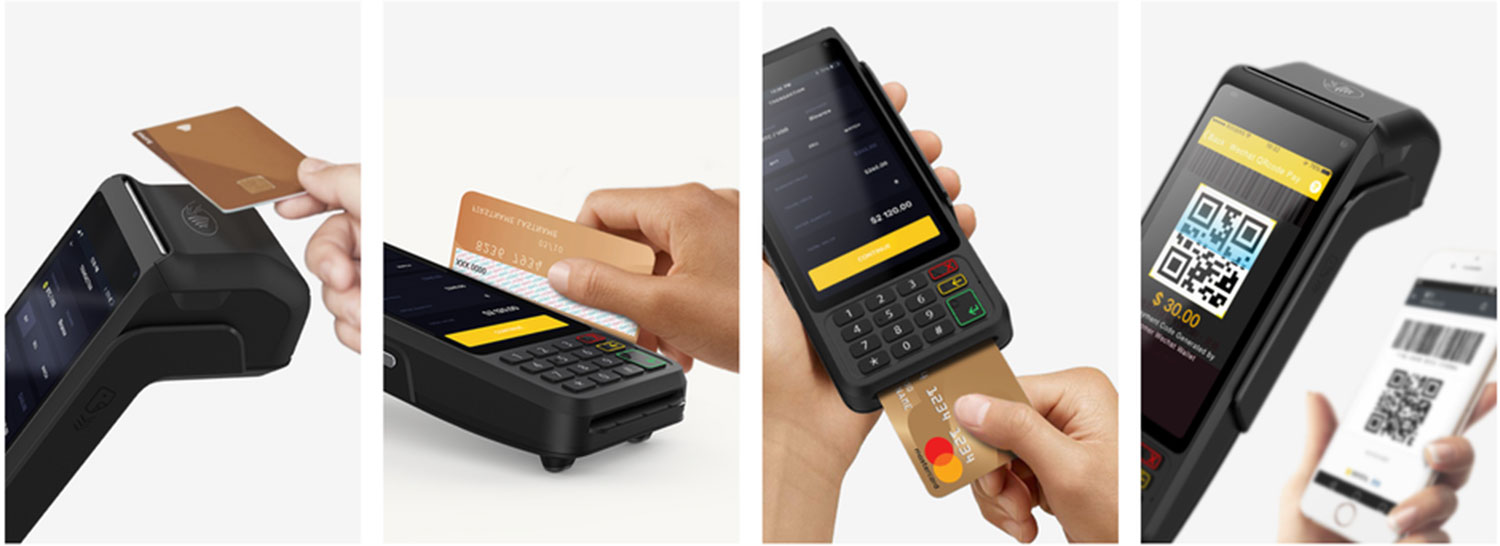

The OTPL P3 All In One Android Payment POS Terminal is the smart POS terminal with keyboard that provides businesses with fully-secure payment acceptance, relying on international payment security certifications,such as PCI-PTS. The P3 delivers a secure payment, acceptance service integrated into a POS and integrating thermal printing, ID card reader, MSR, NFC and 1D or 2D barcode scanning etc. and enables all payment methods, from EMV Contactless or chip & PIN/chip & sign to traditional swipe methods. It also supports new methods such as NFC couponing or mobile wallets.
Strong network coverage, fast transmission speed
Support access to al network (WIFI, 2,4G, 5G and more). HSPA enhances the speed of data upload and download, ensures the efficiency, correctness, completeness of data communication.
Android 7.1
OTPL TMS
OTPL KMS
Contactless
Smart Card
Magstripe
QR Code
Finger Print
Important Details

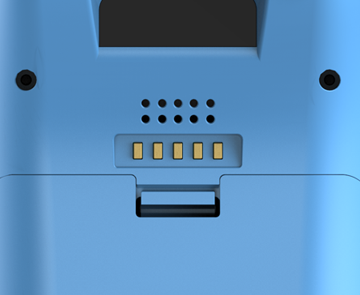

Charging contacts
Has two gold-plated round charging contacts at its bottom, which are corrosion-resistant, stable and endurable.
Anti-slip mat
Anti-slip mat absorbs shock, helps the device to remain stable, and enables smooth operation.

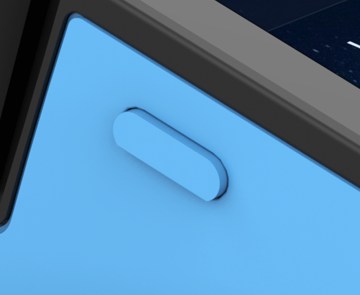

Feed button
No need for pulling out paper, feeding paper simply with a press of button.
OTPL P3 Specification
OS
Android 5.1/8.1, WiseOS
CPU
Qualcomm Quad-core
Memory
1GB DDR3, 8GB Flash Optional: 2+16GB
Display
5.5 inch, Resolution: 1280*720 High Sensitivity Capacitive Touch Screen
Camera
Rear Camera: 5 Mega Pixel Auto Focus Optional: Front camera: 2 Mega Pixel, FF Support High- speed Scanning Algorithm
Network
2G/3G/4G
Wi-Fi
Supports 2.4G/5G, a/b/g/n
Bluetooth
BT 4.0 + BLE
GPS
GPS/A – GPS Glonass, BEIDOU
NFC
ISO/IEC 14443 Type A&B, Felica, Mifare
IC Card Reader
ISO/IEC 7816, Conform to EMV L1/L2
Magnetic Card Reader
ISO/IEC 7816, Track 1/2/3, Bi-directional
Printer
Thermal Printer, Paper: 58*40mm
Memory Extension
Micro SD/TF, 64GB
USB Port
Micro USB, OTG Supported
Card Slot
1*SIM + 2*PSAM, Optional: 2*SIM + 1*PSAM (SAM1 also support SIM Card function)
Battery
6000mAh
Adapter
Input: 100-240v 50/60 Hz 0.35A Output: 5V / 2000 mA
Dimensions
211.7*83*64.8 mm
Weight
514g
Accessories
Charging Cradle Optional: Charging Cradle with Scanner
Temperature
Storage temperature: -35°C to 70°C Operating temperature: -10°C to 55°C Humidity: ≤95%
Certification
EMV Contact L1 / EMV Contactless L1 2.6b / EMV Contact L2 / VISA / MASTERCARD / AMEX / DISCOVER / JCB / PURE / PCI / TQM / Unionpay-International / MIR / RuPay / Brazil ABECS / Nigeria ARCA Bank / Indonesia NSICC / China Unionpay UPTS / State secret certification / GSMA / EU CE / India BIS / Brazil Anatel / Explosion-proof Certification / Egypt VOC / Mexico NOM / Japan MIC&JETA / China CCC / WPC / FCC / CTA / ROHS / WEEE / PTA / NCC / SIRIM / NBTC / MCCS / VCCS / MIC
